THE BEST SPEAKER PROCESSOR
We’ve Ever Made… AQM 408
 |
INTUITIVE AQUACONTROL™ SOFTWARE |
 |
REMOTE ACCESS ANYWHERE |
 |
NEXT GENERATION DSP |

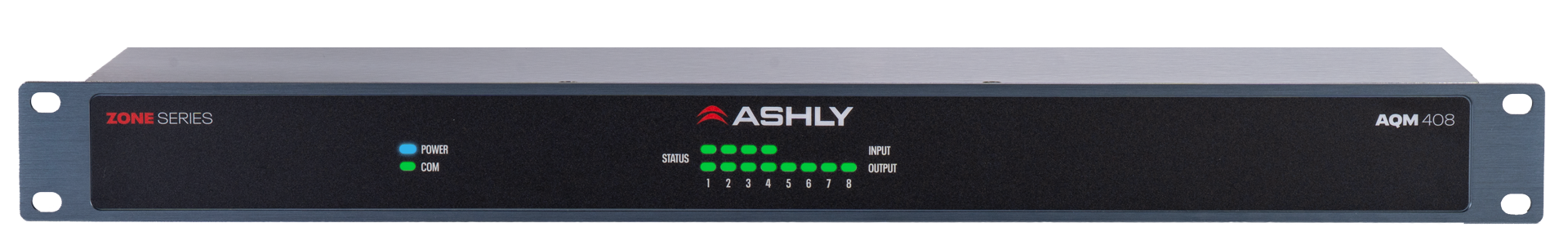

The AQM408 is designed as an advanced, stand-alone speaker processor/zone mixer to be used with external amplification, offering the power & flexibility needed to handle just about any situation.
Based on the AquaControl DSP engine first introduced in the mXa1502, the AQM408 includes a comprehensive library of DSP functions presented in a versatile, yet intuitive UI that doesn’t require a college level course to learn. The AQM408 connects to any browser-enabled device via LAN and Internet from virtually anywhere in the world, allowing convenient remote access for configuration and troubleshooting.
The AQM408’s 4 Input by 8 Output configuration meets the requirements for a host of applications – anywhere from a small zone setup, to a stadium PA system!
|
The AQM408 is based on Ashly’s next generation AquaControl™ web-server based interface, which means it functions with virtually any networked PC or mobile device, any OS. Nothing to install. Plus, it incorporates most of the familiar features found in our legacy Protea DSP software.
The good news is you won’t have to relearn another software suite. Even if you’re new to DSP software, we’ve designed the AquaControl UI to navigate like most popular websites, so it will have a familiar look and feel for the first-time user as well. In addition, the AquaControl interface is optimized for touch-panels, so you won’t need to worry about “right-clicking” if not using a Windows device. Every touch control allows full access to functionality. Nothing is hidden or buried deep in menus.
The new AquaControl™ Portal application is a free download which installs on your Windows™ PC for “off-line” access. All the same great features, functionality and easy user experience in a portable version that can work anywhere you are. No DSP device or network needed. The two versions work together to create a seamless workflow between offline and connected environments.
Please note: AquaControl Portal is for offline emulation only. It can not control a live unit.

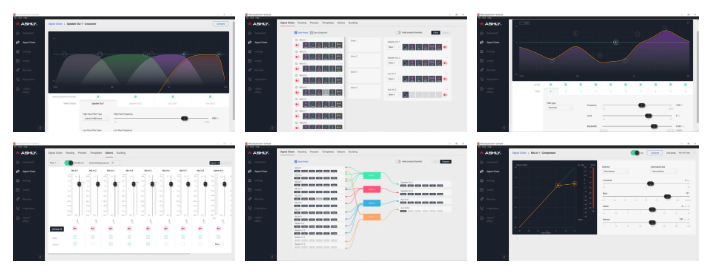

The AquaControl software contains a library of useful DSP tools to allow customization of your installation. This includes:
- Gain, Remote Gain & DVCA Gain
- Dynamics: Compressor, Leveler, Limiter & Gate
- Multi-priority Ducking Matrix
- 31-Band Graphic EQ, Feedback Suppression
- EQ:10-band Parametric, HPF/LPF
- Universal 2, 3 & 4-way X-Over
- FIR Filters
- Delay, Speaker Delay
- Auto-Mixing
- Ambient Noise Control
- Tools: Meter, Signal Generator
- Comprehensive Event Scheduler
|
The AQM408s remote web access allows integrators to better perform service when customers experience issues. Logging into the AquaControl environment from their office rather than sending a truck out to the install site is more convenient and cost-effective and less labor-intensive.
Using the Ethernet connection is where things get really amazing. AquaControl provides full remote access to any function via network but can also serve up dedicated remote pages for live mixing or zone control. These can be accessed using any web-enabled device, but the new AquaTouch7 7” touch panel provides a more elegant on-wall solution for users demanding convenient remote access
The AQM408 generous compliment of remote options is noteworthy. To start with, it provides 2 programmable GPI triggers and 3 Remote VC ports allowing control with simple wall remotes. Everything else can be controlled via AquaControl on any device with a web browser.

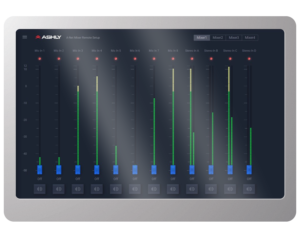

AquaTouch7

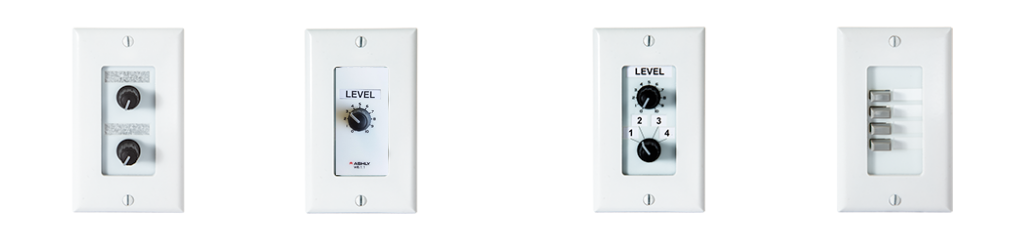

WR-1 WR-1.1 WR-1.5 WR2
|
Combining the historic 4.8SP and 3.6SP processors with powerful DSP toolbox from the AQM1208 creates the best speaker processor Ashly has ever made – adding features to your system not previously available with the SP series, such as feedback suppression, 31-band Graphic EQ, and FIR Filters.
Unlike many processors, the AQM-1208 provides not only all the DSP for input processing, but can accomplish sophisticated matrix-mixing, auto-mixing, priority ducking, while also handling all the speaker management tasks, such as EQ, X-Over, Delay & Limiting. The 8 Matrix Mixers allow creation of 8 independent mixes, each of which can be shared across two or more outputs, allowing for complex routing and zone assignments in applications such as BGM distribution and paging.
 Auto-Mixing |

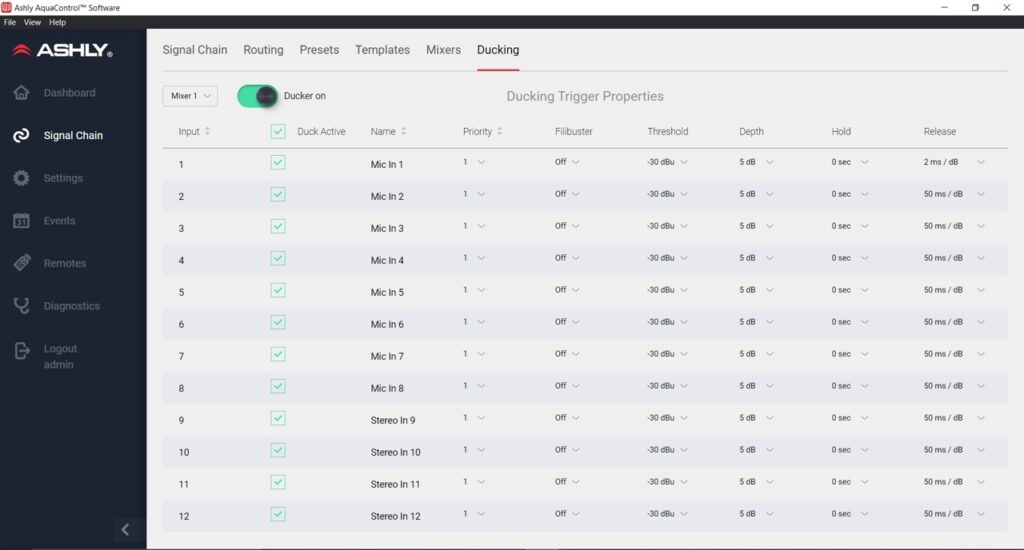

 Ducking |
• PA systems • Retail • Hospitality
• Schools and Colleges
• Huddle Rooms
• Office/Warehouses
Process your entire PA system and even delays with the AQM408. Allow the venue manager to play music through the PA system (and limit the volume) before the FOH console is turned on. The AQM408 is a perfect solution for live entertainment.
Big box to bodega, the AQM408 is perfect for retail. Control background music and sound masking, all wirelessly from a tablet or PC.
Background music throughout the restaurant, separate sound for the bar or lounge, patio, and waiting area. No other company makes a problem solver like the AQM408. It takes up minimal space and can be controlled with wireless tablets at reception and/or bar.
Overview

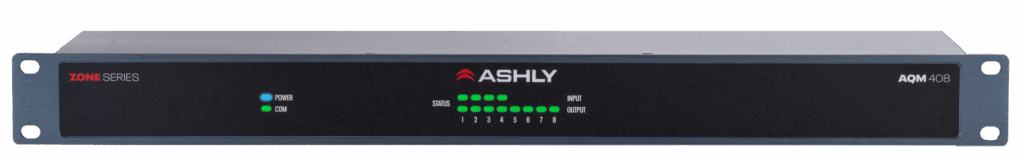

The AQM408 is designed as an advanced, stand-alone speaker processor/zone mixer to be used with external amplification, offering the power & flexibility needed to handle just about any situation. The AQM408 connects to any browser-enabled device via LAN and Internet from virtually anywhere in the world, allowing convenient remote access for configuration and troubleshooting. Based on the AquaControl DSP engine first introduced in the mXa1502 and the AQM1208, the AQM408 includes a comprehensive library of DSP functions presented in a versatile, yet intuitive UI that doesn’t require a college level course to learn.
- New, advanced Ashly AquaControl™ software allows easy and convenient access from many browser-based devices. No app to install!
- Remote Ethernet Access from anywhere in the world via any browser-enabled device
- Scheduler and RTC (Real-Time Clock) allow user-defined automatic, timed activation of various operations
- Compact 1U design reduces rack space requirements
- Gain, Remote Gain & DVCA Gain
- Dynamics: Compressor, Leveler, Limiter & Gate
- Multi-priority Ducking Matrix
- 31-Band Graphic EQ, Feedback Suppression
- EQ:10-band Parametric, HPF/LPF
- Universal 2, 3 & 4-way X-Over
- FIR Filters
- Delay, Speaker Delay
- Auto-Mixing
- Ambient Noise Control
- Tools: Meter, Signal Generator
- Comprehensive Event Scheduler
|
Series |
Models |
Version |
Date |
Download |
Version History |
Instructions |
| AQM Series | AQM408 | v1.1.1 | 12-13-24 | AQM408-v1.1.1.bin | Version History | Instructions |
|

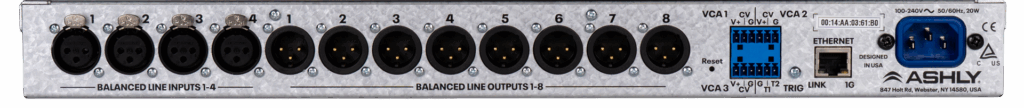

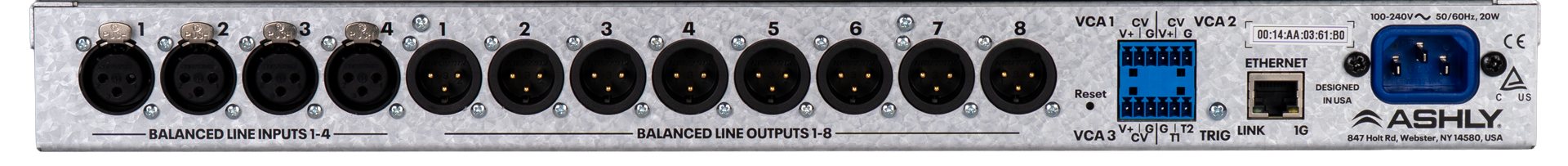

Number of Input Channels |
4 Balanced Line |
|
Number of Output Channels |
8 Balanced Line |
|
Distortion (THD-N, typical) |
<0.01% @ 1kHz, 0dBu |
|
Signal-to-Noise |
>110dB (20Hz-20kHz) unweighted |
|
Frequency Response |
20Hz-20kHz, ±0.25dB |
|
Balanced Input Connector |
XLR |
|
Input Impedance |
10k Ohms |
|
Propagation Delay |
1.08 ms |
|
ADC/DSP/DAC Resolution |
32-Bit |
|
Sample Rate |
48kHz |
|
Environmental |
40º-120ºF (4º-49ºC), 150ºF (65.5ºC) max – not for long term use |
|
AC Mains Nominal Voltage Input |
90 – 240VAC, 50/60Hz |
|
AC Mains Operating Range |
70 – 270VAC |
|
AC Mains Line Cord Connector |
Detachable Nema 5-15 for USA |
|
Control Network |
RJ-45 connector, 1GB Ethernet |
|
Line Output Connector |
Balanced XLR |
|
Line Output Maximum Level |
+20.5 dBu |
|
Remote DC Level Control |
Euroblock 3.5mm – Gnd, CV, V+ per each of the 3 VCA inputs |
|
Unit Dimensions |
19”W x 1.75”H x 8.5”D (483mm x 45mm x 216mm) |
|
Shipping Dimensions |
23”W x 4.5”H x 12.5”D / 584mm x 114mm x 318mm |
|
Unit Weight |
6.2 lbs (2.8 kg) |
|
Shipping Weight |
9 lbs (4.1 kg) |
|
|
 |
 |
|
 |
 |
 |
 |
|
 |
 |
 |
 |
 |
 |
 |
 |
|
 |
 |
 |
Remote Controllers

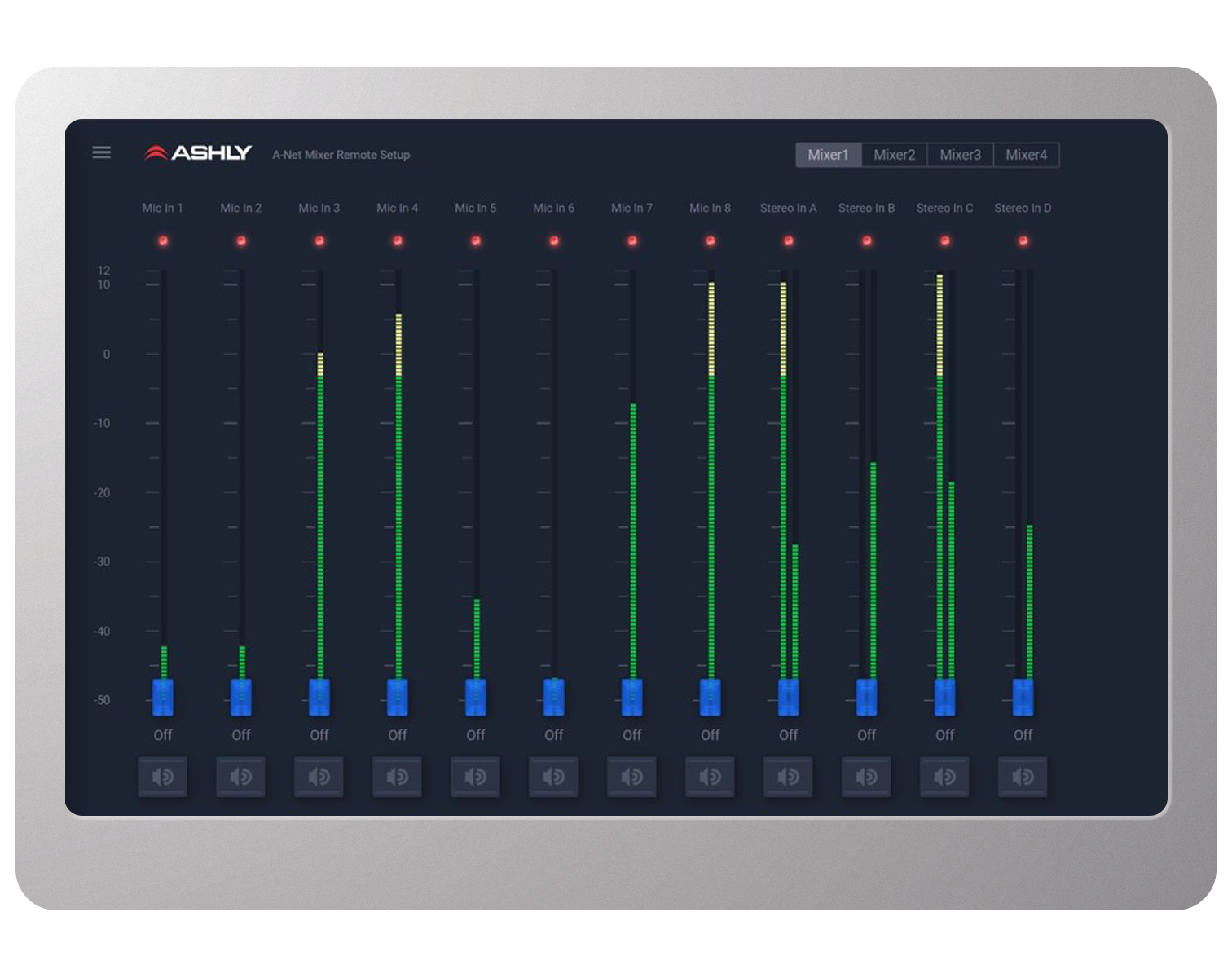

AquaTouch 7
The AquaTouch7 Remote is the perfect compliment to AquaControl products. Offering convenient and intuitive touch-control of all remote functions, the AquaTouch7 uses a wired Ethernet connection to its host device, providing reliable and secure access.
The AquaTouch7 is designed to be flush wall-mounted. PoE compatibility makes installation fast and simple.
WR-1
WR-1 Is a single-gang, wall remote that allows control of volume for any two (2) Input or Output channels on the AQM1208. This is useful for maximizing the number of zones or areas that require control, while keeping hardware and installation cost to a minimum.
WR-1.1
WR-1.1 Is a single-gang, wall remote that allows control of volume for any single Input or Output channel on the AQM1208. This is great for when individual volume controls need to be located in each zone. Provides a simple and cost-effective remote option.
WR-1.5
WR-1.5: This “combination” remote offers two control knobs in a single-gang, wall format. One knob allows control of volume for any Input or Output channel on the AQM1208 and the other is for selection of exclusive functions such as any four Presets, Sub-presets or Sources. The WR-1.5 offers total zone control in a simple, intuitive form-factor.
WR-2
For easy preset scene or source selection, the WR-2 remote’s 4 push-buttons allow selection of exclusive functions (Preset, Subpreset, Source Select 1-4) in a single-gang wall-mount format.

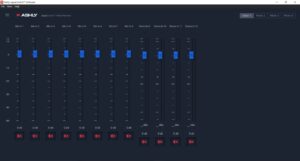

Virtual FR Remote Mixer Page
This virtual remote is built right into the AquaControl software, so it comes at no extra cost. It may be accessed from any iOS or Android browser-enabled device (such as a tablet or smartphone) connected to the the AQM1208 using a Wi-Fi router. It allows control of up to 16 Mixer channel levels as well as mutes (using the device’s touchscreen) and also meters per mixer page (1-4) that are set up using the AquaControl Software interface. It’s a convenient and easy-to-use fader interface for when live mix control is needed.
DVCA Remote Page
DVCA Remote Page Another “virtual” controller, the DVCA page is also a remote feature that is incorporated into AquaControl software. The DVCA remote provides touchcontrol of up to four (4) DVCA groups, which work as “Master Faders” for any assigned group of the AQM1208 Input or Output channels. Any wireless iOS or Android device may access the DVCA page for convenient control channel groups or zones.
Virtual WR-5 Remote Page
The Virtual WR-5 remote is designed to duplicate the hardware version wall remote for PnES-enabled models. It provides the same control functions for AquaControl, including 6 buttons, which may be used for Preset, Source Select, Muting and Fader Mode, as well as a programmable Channel fader and “LED” meter. It can be viewed from any browser-enabled smart phone
