Network Remotes

The FR-8 and FR-16 are Ethernet devices that provide fader-based remote-level control for ne products with DSP capabilities. The FR-8 controls up to 8-user assigned inputs, outputs, or mixer outputs, and the FR-16 controls up to 16. Controllable products are: nXp amplifiers, ne24.24M, ne 2-channel Power Amplifiers w/ DSP, ne Multi-Channel Power Amplifiers w/DSP, ne4800/8800 DSP Processors, and all Pema™ Power Amplifiers.

The neWR-5 is the Network version of our popular WR-5 decora wall remote. It features six programmable buttons and up/down cursor. The buttons can be programmed as source select, zone select or to trigger presets. The up/down cursor is typically used as a volume control with software defined volume range.

The RPOE-1 provides Power Over Ethernet (PoE) for the neWR-5, FR-8, and FR-16 networked remotes. The PoE standard (IEEE 802.3af) is designed to transmit data and power to devices over a single wired network connection.

Control your audio system from any location with our Network Remotes.

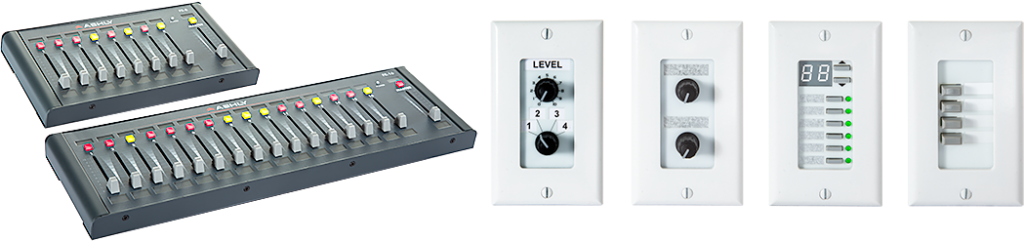

The FR-16 (16-channel) and FR-8 (8 channel) Network Remote Faders are a great choice for facilities that use amateur operators for occasional live performances. Mix and match network remotes in a single installation via a standard Cat-5 cable.

Each slider can be programmed to allow the amount of volume control you deem appropriate for the amateur operator. The LED button at the top of each slider can be programmed as a “Mute” or A/B Source select. The FR’s can be used as either tabletop or wall-mount mixers. An optional rack-mount kit is available.

The neWR-5 is the Network version of our popular WR-5 decora wall remote. It features six programmable buttons and up/down cursor. The buttons can be programmed as source select, zone select or to trigger presets. The up/down cursor is typically used as a volume control with software defined volume range.

FR-16 & FR-8
■ IEEE 802.3af power-over-Ethernet (PoE, Class 2)
■ Automatic IP addressing
■ Assignable fader scaling
■ Mute/unmute buttons with signal or A/B input source select option
■ Assignable signal level LED breakpoints
■ Communication failure indicator
■ User-defined labels per channel
■ Panel lock-out contact closure
■ Use along with neWR-5 wall remote
■ Wall mount with or without standard North American wall boxes or portable tabletop use

neWR-5
■ Six programmable LED function buttons
■ Two, Up/Down buttons w/ LED display adjust parameters
■ Preset recall and preset scroll
■ Input, output, zone, and matrix mix level control
■ Zone source select
■ Channel mute

RPOE-1
■ 100-240VAC, 50-60Hz, 0.5A maximum
■ Cat5/Cat6
■ Light Weight: 145g
■ Over-Voltage Protection
■ Short-circuit Protection
■ Compliance: Cispr 22’B’, Vcci’B’, Fcc’B’, UL

Series Data Sheet Manual Line Art
FR Download Download Download
NE Download Download Download
RPOE-1 Download

Rack mount kits available for FR Series Network Remotes (FR16-RMK, FR8-RMK) Power-over-Ethernet Injector also available (RPOE-1).

Series Image Reference
FR FR-8  FR-16
NE neWR-5
RPOE-1 RPOE-1
