Experience unmatched audio control with the AQZ32 Dante® Embedded matrix processor. With powerful DSP capabilities and flexible connectivity, it pairs seamlessly with external amplifiers to handle any setup. Configure and control remotely from any browser-enabled device, anywhere in the world. Powered by our AquaControl™ DSP engine, the AQZ32 features 16 processed mic/line inputs and 16 processed line outputs. Dante allows you to mix an additional 16 inputs, expanding the matrix to 32×16. You can also send processed inputs or outputs back to the Dante network. Simplify your audio management with effortless precision.
|
The AQZ32 is the first product to integrate AquaControl™ with Dante® Embedded technology, significantly enhancing its digital I/O capabilities. This integration allows seamless audio routing to and from other Dante-enabled devices, making the AQZ32 a versatile addition to any audio setup. Powered by Ashly’s next-generation AquaControl™ DSP engine, the AQZ32 offers an intuitive, web-browser based interface that requires no specialized training or certification, getting you up and running quicker and smoother.
For those interested in exploring AquaControl without a unit in hand, download AquaControl portal at the link below for free. This allows users to familiarize themselves with its powerful features and user-friendly design, making it easier and quicker to integrate the AQZ32 or other AquaControl products into any system.
Please note: AquaControl Portal is for offline emulation only. It can not control a live unit.
|
The AQZ32 is our largest matrix processor to date, featuring 16 processed mic/line inputs and 16 processed line outputs. This extensive channel capacity provides unmatched flexibility and control, ideal for complex audio environments. To top it off, we added Dante® AoIP, enabling you to mix an additional 16 inputs. This allows you to manage a total of 32 channels routed to the 16 outputs, expanding your matrix to 32×16.
Moreover, any of the 16 processed inputs or 16 processed outputs can be seamlessly sent back onto the Dante network, further enhancing the system’s versatility. The AQZ32 is also equipped with extremely high-quality mic preamps, surpassing those found in competing products, ensuring superior audio fidelity. This combination of extensive channel capacity, advanced routing capabilities, and top-notch audio quality makes the AQZ32 an indispensable tool for audio professionals seeking comprehensive and reliable performance.
|
The AQZ32’s AquaControl™ interface can be accessed from anywhere in the world, providing convenient remote access for configuration and control. This feature is a significant advantage for integrators who need to install and manage products remotely. Accessing the AQZ32 remotely allows integrators to perform service more efficiently when customers experience issues. Instead of sending a truck to the installation site, they can log into the AquaControl™ environment from their office, making the process more convenient, cost-effective, and less labor-intensive.
Beyond remote access, the AQZ32 offers other impressive remote control capabilities. Using the Ethernet connection, AquaControl™ provides full remote access to any function via the network. It can also serve dedicated remote pages for live mixing or zone control, accessible from any device with a web browser, like a tablet or phone. For users seeking a more elegant on-wall solution, the new AquaTouch7 7” touch panel offers convenient remote access, ensuring seamless operation and control.
Overview
The AQZ32 is designed as an advanced, Dante embedded zone mixer to be used with external amplification, offering the processing & flexibility needed to handle just about any situation. The AQZ32 connects to any browser-enabled device via LAN from virtually anywhere in the world, allowing convenient remote access for configuration and troubleshooting. Based on the AquaControl™ DSP engine from the AQM1208, the AQZ32 includes a comprehensive library of DSP functions presented in a versatile, yet intuitive UI that doesn’t require a college level course to learn.
- Dante Embedded – Ashly’s first AquaControl product with Dante AoIP
- Advanced Ashly AquaControl™ software allows easy and convenient access from almost any browser-based device. No app to install!
- Remote Ethernet Access from anywhere in the world via any browser-enabled device
- Flexible IO configuration to accommodate a wide range of applications:
- Comprehensive Mixing via 16-balanced Mic/Line Inputs w/Precision Class A mic preamp design
- 16 Balanced Line Outputs
- 24 input x 32 output Dante AoIP
- Generous integration I/O, including: Wired Network Control, 8 x GPI, 2x GPO, 8x VC
- Scheduler and RTC (Real-Time Clock) allow user-defined automatic, timed activation of various operations.
- Compact 1U design reduces rack space requirements.
- Comprehensive DSP includes: o Gain, Remote Gain & DVCA Gain
- Dynamics: Compressor, Leveler, Limiter & Gate
- 12 priority Ducking Matrix
- EQ: 10-band Parametric, 28 band Graphic, HPF/LPF
- Feedback Suppressor
- Universal 2/3/4-way X-Over
- FIR Filters
- Delay, Speaker Delay
- Auto-Mixing
- Ambient Noise Control
- Signal Generator
- Comprehensive Event Scheduler
Models |
Data Sheet |
Manual |
Quick Start Guide |
A&E |
Processors Brochure |
| AQZ32 | — | — | — | — | Download |
|
Series |
Models |
Version |
Date |
Download |
Version History |
Instructions |
| AQZ | AQZ32 | — | — | — | — | — |
| I/O Configuration | 16 Balanced Mic/Line Inputs (Euroblock), 16 Line Outputs (Euroblock) |
| Network Audio | Dante Embedded (24 in x 32 out) |
| DSP Functions | Gain, Remote VCA Gain, DCA Gain, Compressor, Auto Leveler, Brick Wall Limiter, 10-band PEQ, 28-band GEQ, Feedback Suppressor, HPF, LPF, Delay, 2/3/4-way X-Over, FIR Filters, Ambient Noise Compensation, Ducker, Gate, Signal Generator, Automatic Mic Mixer |
| Distortion (THD-N, typical) | <0.01% @ 1kHz, 0dBu |
| Frequency Response | 20Hz-20kHz, ±0.05dB |
| S/N Ratio | >110dB (20Hz-20kHz) |
| Input Impedance | 3kΩ |
| Propagation Delay | 2.6 ms (Dante not in use) |
| Digital Performance | 32bit/48kHz |
| Environmental | 40°F-120°F (4°C-49°C) |
| AC Mains Nominal Voltage Input | 90-240VAC, 50/60Hz |
| Software | AquaControl™ Integrated web-server, accessible via web browser |
| Control I/O | Ethernet 100/1000BaseT, Remote VCA (8), GPI/O (8/2) |
| Compatible Ashly Remote Control Devices | AquaTouch7, WR-1, WR-1.1, WR-1.5, WR-2 |
| Unit Weight | 7 lbs |
| Unit Dimensions | 19”W x 1.75”H x 8.5”D (483mm x 45mm x 216mm) |
|
|

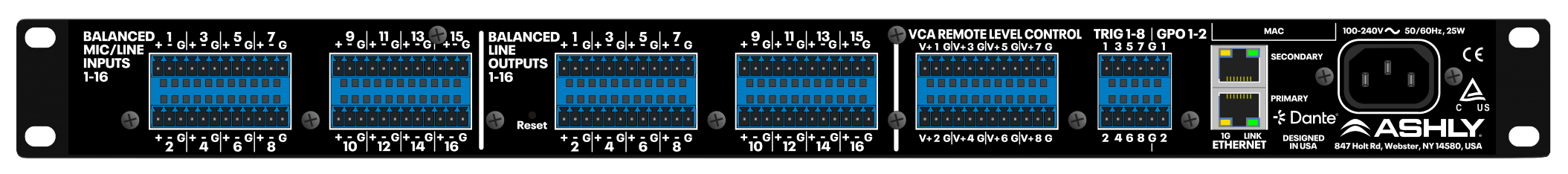

Rear |
 |
 |
|
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
Remote Controllers
AquaTouch 7

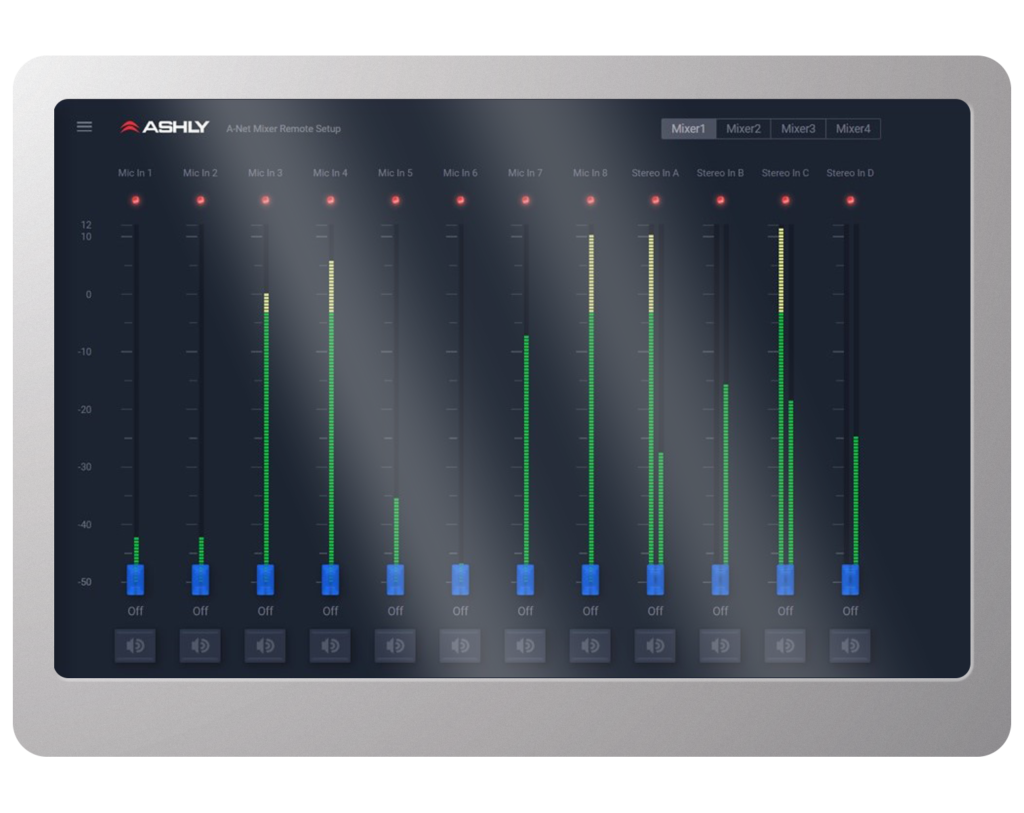

The AquaTouch7 Remote is the perfect compliment to AquaControl products. Offering convenient and intuitive touch-control of all remote functions, the AquaTouch7 uses a wired Ethernet connection to its host device, providing reliable and secure access.
The AquaTouch7 is designed to be flush wall-mounted. PoE compatibility makes installation fast and simple.
WR-1
WR-1 Is a single-gang, wall remote that allows control of volume for any two (2) Input or Output channels on the AQM1208. This is useful for maximizing the number of zones or areas that require control, while keeping hardware and installation cost to a minimum.
WR-1.1
WR-1.1 Is a single-gang, wall remote that allows control of volume for any single Input or Output channel on the AQM1208. This is great for when individual volume controls need to be located in each zone. Provides a simple and cost-effective remote option.
WR-1.5
WR-1.5: This “combination” remote offers two control knobs in a single-gang, wall format. One knob allows control of volume for any Input or Output channel on the AQM1208 and the other is for selection of exclusive functions such as any four Presets, Sub-presets or Sources. The WR-1.5 offers total zone control in a simple, intuitive form-factor.
WR-2
For easy preset scene or source selection, the WR-2 remote’s 4 push-buttons allow selection of exclusive functions (Preset, Subpreset, Source Select 1-4) in a single-gang wall-mount format.
Virtual FR Remote Mixer Page
This virtual remote is built right into the AquaControl software, so it comes at no extra cost. It may be accessed from any iOS or Android browser-enabled device (such as a tablet or smartphone) connected to the the AQM1208 using a Wi-Fi router. It allows control of up to 16 Mixer channel levels as well as mutes (using the device’s touchscreen) and also meters per mixer page (1-4) that are set up using the AquaControl Software interface. It’s a convenient and easy-to-use fader interface for when live mix control is needed.
DVCA Remote Page
DVCA Remote Page Another “virtual” controller, the DVCA page is also a remote feature that is incorporated into AquaControl software. The DVCA remote provides touchcontrol of up to four (4) DVCA groups, which work as “Master Faders” for any assigned group of the AQM1208 Input or Output channels. Any wireless iOS or Android device may access the DVCA page for convenient control channel groups or zones.
Virtual WR-5 Remote Page
The Virtual WR-5 remote is designed to duplicate the hardware version wall remote for PnES-enabled models. It provides the same control functions for AquaControl, including 6 buttons, which may be used for Preset, Source Select, Muting and Fader Mode, as well as a programmable Channel fader and “LED” meter. It can be viewed from any browser-enabled smart phone
