AW Series
Wall-Mount Speaker

What sets AWs apart from the others?

SWEETER SWEET SPOT

+ READ MORE

DSP PROCESSING

+ READ MORE

PART OF AN ECO-SYSTEM

+ READ MORE

Widersweet spot with Directivity Optimized Crossover

 We designed our AW Series to meet or match the performance of more expensive on-wall speakers… yet at a price point that can contribute to a winning bid — and a satisfied customer. Here’s how.

For this type of speaker, music and speech are equally important. Both rely on a large “sweet spot” and off-axis intelligibility. Many speakers strive only for ON-axis frequency response and pay too little attention to OFF-axis system response.

Directive Optimization, a new, proprietary approach to crossover design, significantly improves vertical axis response. More listeners on the extreme left and right can hear the spoken word better. Music in a restaurant or bar is more immersive and less directional. DOC avoids the lock-step “studio monitor” configuration that is less than optimal for longer-throw applications and creates a noticeably wider sweet spot that is perfect for speech throughout a room, patio or bar area.

DOC: Improved Directivity and Improved Response.

The printed response specs for most speakers are measured from the direct ON-axis response…which is nice for a listener sitting directly in front of the speaker.

However, too little attention is often paid to the OFF axis frequency response of the loudspeaker system.
This can result in inconsistent off-axis response and changing sound quality within the speaker’s intended

coverage pattern. No matter how you situate AW speakers, more listeners are going to hear clearer speech and more spacious music.

Custom DSP processing further improves AW performance.

While AW speakers provide ample performance on their own, Ashly’s powerful, easy-to-use Protēa and AquaControl™ DSP systems give you the opportunity to apply advanced EQ, FIRs, further X-over refinements, and delay to AW speakers, providing a wider, flatter frequency response across the coverage angle. These free downloadable presets give Ashly DSP processor units and processor-equipped amps the ability to realize the best possible sound without needing to manually adjust for any frequency response anomalies that might otherwise produce less than optimal results.

DSP: The “secret sauce” that sets AW apart from the competition.

Consider these ±30˚ Vertical Axis response curves for typical 2-way wall-mount speakers vs AWs. Our Directivity Optimized Crossover, along with custom DSP voice presets result a wider “sweet spot”, flatter frequency response and improved phase accuracy for each AW speaker model.

Three levels of DSP processing for AW wall-mount speakers.

Level 1 applies the most advanced and precise DSP to Ashly speakers. Level 1 currently works with most Protea-enabled products and includes multi-band PEQ, Universal X-Over filters, HPF/LPF, FIR filters and Delay (when used with the SP-12.1P subwoofer). This DSP level applies to the following Ashly Protea-equipped amplifier and DSP processors: nXp, nep, pema & ne matrix processors (ne4400, 4800, etc…). Level 1 Speaker files will also be available to work for AquaControl-enabled models, such as the mXa-1502. These will provide similar processing to that found in Protea-based models.
Level 2 is designed to work exclusively for the ne24.24m matrix processor. It encompasses many of the same features as Level 1, except for FIR filters.
Level 3 is exclusively for the 3.6 & 4.8SP Speaker System Processors and includes more basic PEQ, HPF/LPF functions and Delay. No FIRs or Universal X-Over.

An integral part of the overall Ashly eco-system solution.

The world doesn’t need another brand of ordinary wall-mount speakers. That’s why we developed a line with unique features and performance. Now you can spec an all-Ashly system with quality speakers that make beautiful music with our amplifiers and processors that feature Protēa and AquaControl™…and of course a range of wall controllers.

One order. One delivery. One satisfied customer!

Technical Details of Ashly AW Series Wall-Mount Speakers

Ashly AW speakers are made from high-impact-resistant resin with detachable metal grilles. They are suitable for both indoor and outdoor use with IP52 (dripping water @ 15˚) or IP54 (splash at any angle).  All four models come with tilt / swivel brackets and 2-way models come with safety tethers with safety cord, and are also surface mountable.

AW SERIES PRODUCTS

AW 8.2T

Quisque at erat in ex consectetur vulputate. Ut pellentesque convallis eros ullamcorper ullamcorper. Nullam orci sem, rhoncus mattis laoreet quis.

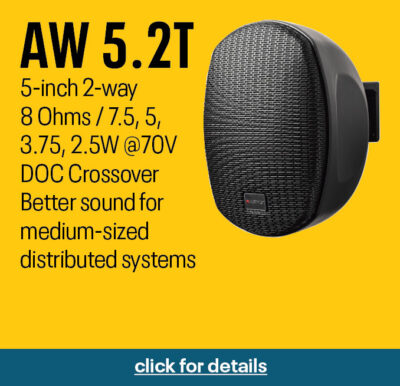

AW 5.2T

Quisque at erat in ex consectetur vulputate. Ut pellentesque convallis eros ullamcorper ullamcorper. Nullam orci sem, rhoncus mattis laoreet quis

AW 3.2P

Quisque at erat in ex consectetur vulputate. Ut pellentesque convallis eros ullamcorper ullamcorper. Nullam orci sem, rhoncus mattis laoreet quis.

AW 2.1P

Quisque at erat in ex consectetur vulputate. Ut pellentesque convallis eros ullamcorper ullamcorper. Nullam orci sem, rhoncus mattis laoreet quis.

[fusion_al_imagemagnify magnify_image=”https://ashly.com/wp-content/uploads/2021/03/AW_8.2T_B_back.jpg” magnify_image_large=”” magnification_amount=”6″ magnification_highlight=”yes” magnification_movement=”hover” movement_click=”yes” movement_tap=”yes” magnification_position_top=”” magnification_position_left=”” mobile_magnification_position_top=”” mobile_magnification_position_left=”” magnification_reset=”initial” magnification_reset_mobile=”no” reset_time=”1.0″ movement_coordinates=”” movement_time=”” movement_timing_speed=”” movement_timing_function=”ease” element_selector=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” magnify_class=”” magnify_id=”” magnification_area_width=”75%” magnification_area_height=”50%” magnification_area_mobile_width=”” magnification_area_mobile_height=”” magnification_inside=”no” magnification_type=”custom” top_left_radius=”12px” top_right_radius=”12px” bottom_right_radius=”12px” bottom_left_radius=”12px” border_width=”1px” border_color=”rgba(135,135,135,0.45)” base_color=”#b7b7b7″ intro_text=”Hover to Zoom” intro_text_reset=”yes” intro_text_color=”#ffffff” intro_text_bg_color=”rgba(10,10,10,0.8)” image_width=”” image_container_shadow=”none” image_container_shadow_color=”” magnification_area_shadow=”shadow_light” mag_area_shadow_color=”” image_opacity=”” image_alignment=”center” animation_type=”fade” animation_direction=”up” animation_speed=”0.3″ animation_offset=”” /]
[fusion_al_imagemagnify magnify_image=”https://ashly.com/wp-content/uploads/2021/03/AW_8.2T_B_back.jpg” magnify_image_large=”” magnification_amount=”6″ magnification_highlight=”yes” magnification_movement=”hover” movement_click=”yes” movement_tap=”yes” magnification_position_top=”” magnification_position_left=”” mobile_magnification_position_top=”” mobile_magnification_position_left=”” magnification_reset=”initial” magnification_reset_mobile=”no” reset_time=”1.0″ movement_coordinates=”” movement_time=”” movement_timing_speed=”” movement_timing_function=”ease” element_selector=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” magnify_class=”” magnify_id=”” magnification_area_width=”75%” magnification_area_height=”50%” magnification_area_mobile_width=”” magnification_area_mobile_height=”” magnification_inside=”no” magnification_type=”custom” top_left_radius=”12px” top_right_radius=”12px” bottom_right_radius=”12px” bottom_left_radius=”12px” border_width=”1px” border_color=”rgba(135,135,135,0.45)” base_color=”#b7b7b7″ intro_text=”Hover to Zoom” intro_text_reset=”yes” intro_text_color=”#ffffff” intro_text_bg_color=”rgba(10,10,10,0.8)” image_width=”” image_container_shadow=”none” image_container_shadow_color=”” magnification_area_shadow=”shadow_light” mag_area_shadow_color=”” image_opacity=”” image_alignment=”center” animation_type=”fade” animation_direction=”up” animation_speed=”0.3″ animation_offset=”” /]
[fusion_al_imagemagnify magnify_image=”https://ashly.com/wp-content/uploads/2021/03/AW_8.2T_B_back.jpg” magnify_image_large=”” magnification_amount=”6″ magnification_highlight=”yes” magnification_movement=”hover” movement_click=”yes” movement_tap=”yes” magnification_position_top=”” magnification_position_left=”” mobile_magnification_position_top=”” mobile_magnification_position_left=”” magnification_reset=”initial” magnification_reset_mobile=”no” reset_time=”1.0″ movement_coordinates=”” movement_time=”” movement_timing_speed=”” movement_timing_function=”ease” element_selector=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” magnify_class=”” magnify_id=”” magnification_area_width=”75%” magnification_area_height=”50%” magnification_area_mobile_width=”” magnification_area_mobile_height=”” magnification_inside=”no” magnification_type=”custom” top_left_radius=”12px” top_right_radius=”12px” bottom_right_radius=”12px” bottom_left_radius=”12px” border_width=”1px” border_color=”rgba(135,135,135,0.45)” base_color=”#b7b7b7″ intro_text=”Hover to Zoom” intro_text_reset=”yes” intro_text_color=”#ffffff” intro_text_bg_color=”rgba(10,10,10,0.8)” image_width=”” image_container_shadow=”none” image_container_shadow_color=”” magnification_area_shadow=”shadow_light” mag_area_shadow_color=”” image_opacity=”” image_alignment=”center” animation_type=”fade” animation_direction=”up” animation_speed=”0.3″ animation_offset=”” /]
[fusion_al_imagemagnify magnify_image=”https://ashly.com/wp-content/uploads/2021/03/AW_8.2T_B_back.jpg” magnify_image_large=”” magnification_amount=”6″ magnification_highlight=”yes” magnification_movement=”hover” movement_click=”yes” movement_tap=”yes” magnification_position_top=”” magnification_position_left=”” mobile_magnification_position_top=”” mobile_magnification_position_left=”” magnification_reset=”initial” magnification_reset_mobile=”no” reset_time=”1.0″ movement_coordinates=”” movement_time=”” movement_timing_speed=”” movement_timing_function=”ease” element_selector=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” magnify_class=”” magnify_id=”” magnification_area_width=”75%” magnification_area_height=”50%” magnification_area_mobile_width=”” magnification_area_mobile_height=”” magnification_inside=”no” magnification_type=”custom” top_left_radius=”12px” top_right_radius=”12px” bottom_right_radius=”12px” bottom_left_radius=”12px” border_width=”1px” border_color=”rgba(135,135,135,0.45)” base_color=”#b7b7b7″ intro_text=”Hover to Zoom” intro_text_reset=”yes” intro_text_color=”#ffffff” intro_text_bg_color=”rgba(10,10,10,0.8)” image_width=”” image_container_shadow=”none” image_container_shadow_color=”” magnification_area_shadow=”shadow_light” mag_area_shadow_color=”” image_opacity=”” image_alignment=”center” animation_type=”fade” animation_direction=”up” animation_speed=”0.3″ animation_offset=”” /]

The AW Series are made for both indoor and outdoor wall-mount applications.

Both dust and water-resistant, they are ideal for BGM use in bar/restaurants (including patios), Paging and BGM for retail stores, distributed audio in HoW, schools, sports/health clubs and public spaces. Highly efficient and durable, they complete the total Ashly solution when combined with Ashly’s DSP and DSP-enable amplifiers for the widest, most consistent coverage available in a small speaker. The AW Series is available in four model sizes: AW-2.1P 2.75” Full-range 6Ω speaker IP52 rated. AW-3.2P 3” 2-Way 8Ω speaker, IP-52 rated. AW-5.2T 5” 2-Way speaker w/Transformer, IP54 rated. AW-8.2T 8” 2-Way speaker w/Transformer, IP54 rated. Where extended low-frequency response is required, add the SP-12.1P 12” Subwoofer for full-range applications like DJ or Live Music Performance. Directivity Optimized Crossover integrated in all 2-way models and model-specific DSP presets available for Protea & AquaControl-enabled amps & processors. Wall-mounting hardware is supplied. All models are sold in pairs.

AW Series Model

Power Handling

Impedance

Frequency response

Transducers

AW 2.1P 15 W @6Ω 250 Hz to 20 kHz 2.75″ full range
AW 3.2P 30 W @ 8Ω 150 Hz to 20 kHz 1.1″ PEI HF
3.5″ LF
AW 5.2T 50 W @ 8Ω 8Ω or constant voltage 130 Hz to 20 kHz 0.75″ silk dome HF
5.25″ LF
AW 8.2T 70 W @ 8Ω 8Ω or constant voltage 95 Hz to 20 kHz 1″ silk dome HF
8″ LF
