Let’s Go on an EcoTour™

With Uncompromised Efficiency

ULTRA- HIGH EFFICIENCY
ECO-FRIENDLY AMPLIFICATION
STABLE DOWN TO 0.2Ω

Our first new Front of House/Performance Install amplifier line in more than 10 years! Ashly has redefined what a Performance amplifier can be.

Our super high-efficiency design means that you can run at full power all day and night long even up to a true 120 degrees F ambient temperature. The Eco-friendly design also means the smallest carbon footprint available. Finally, the design is so robust that it’s stable down to 0.2 ohms! (Not a misprint!). So, if you can get everything you want from one amplifier line and be Eco-friendly, why wouldn’t you go on an EcoTour?

Large Church and Concert PA • Airports and Terminals • Sports Stadiums • DJ Auditoriums & Theaters

Available in 2 & 4-channel configurations with 500W, 1,000W or 1,500W per channel, there’s an EcoTour that’s right for your project. Power-hungry sub-woofers? No problem. EcoTour does 2 Ohms lying down.
EcoTour amps can drive longer and louder than amps twice their rated power and cost. Powerful. Clean. Reliable.

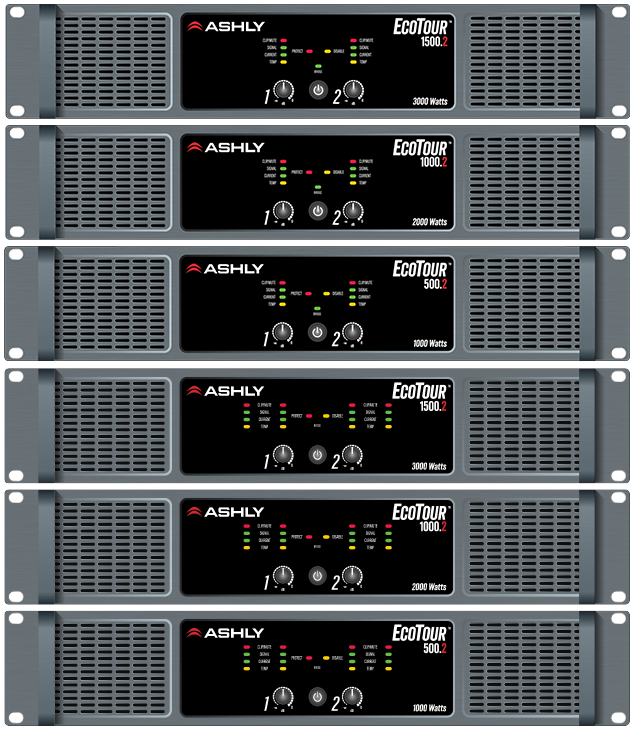

  • 2 and 4-channel models
  • 500 to 1500W @4Ω
  • Full power at 2 ohms, stable down to 0.2 ohms
  • 70/100V capability
  • Ultra-high efficiency Class D design
  • DPFC (Dynamic Power­
  • Factor Correction)
  • Selectable amp gain per channel
  • Adjustable front panel Input Gain per channel with lock-out
  • Bi-lateral SailFlow cooling
  • XLR / 1/4 in combo jack and Neutrik speakON jacks
  • Switchable HPF and Clip Limiter per channel
  • Solid metal front panel
  • 5-year Warranty

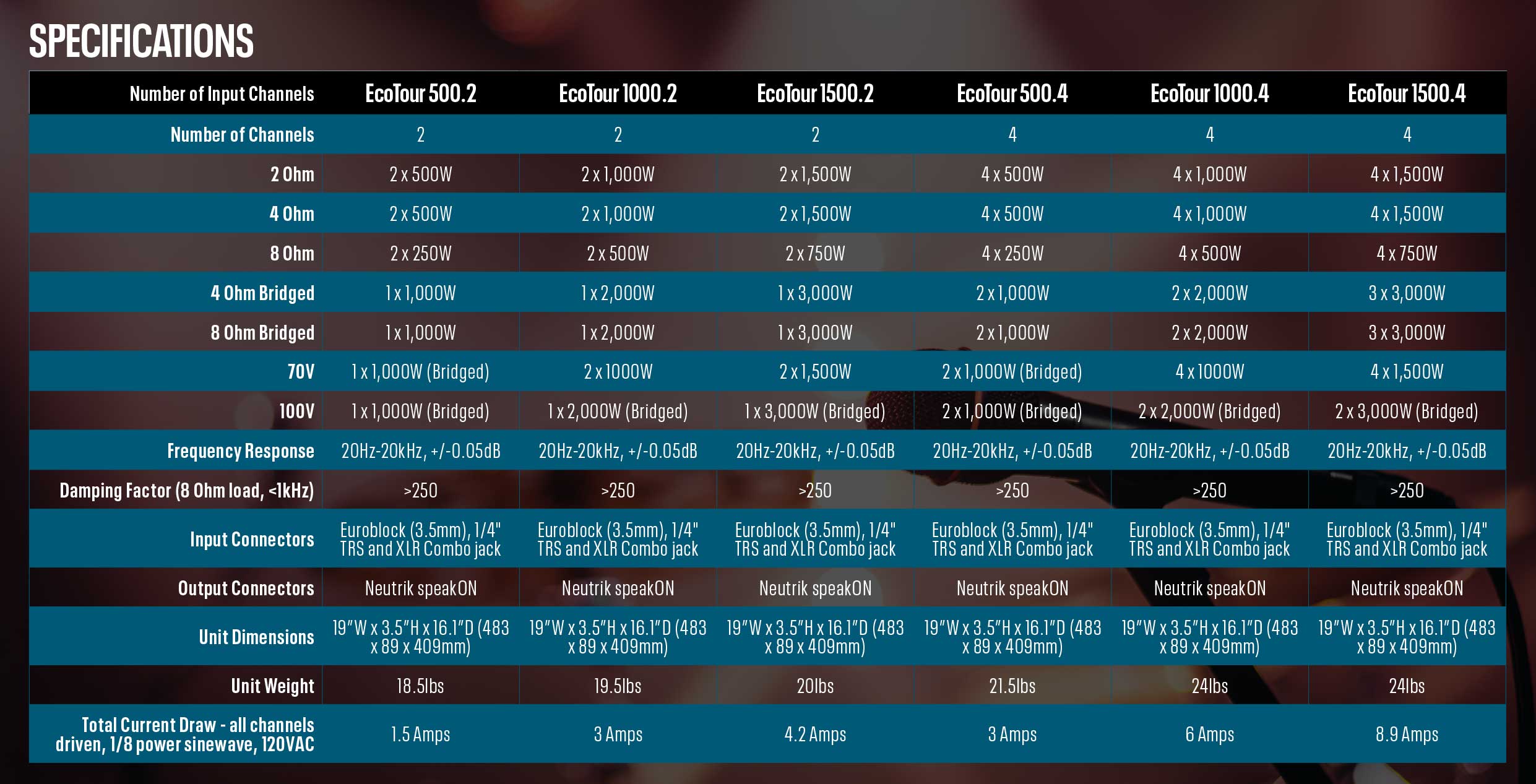

POWER RATINGS

Number of Input Channels EcoTour 500.2 EcoTour 1000.2 EcoTour 1500.2 EcoTour 500.4 EcoTour 1000.4 EcoTour 1500.4
Number of Channels 2 2 2 4 4 4
2 Ohm 2 x 500W 2 x 1,000W 2 x 1,500W 4 x 500W 4 x 1,000W 4 x 1,500W
4 Ohm 2 x 500W 2 x 1,000W 2 x 1,500W 4 x 500W 4 x 1,000W 4 x 1,500W
8 Ohm 2 x 250W 2 x 500W 2 x 750W 4 x 250W 4 x 500W 4 x 750W
4 Ohm Bridged 1 x 1,000W 1 x 2,000W 1 x 3,000W 2 x 1,000W 2 x 2,000W 2 x 3,000W
8 Ohm Bridged 1 x 1,000W 1 x 2,000W 1 x 3,000W 2 x 1,000W 2 x 2,000W 2 x 3,000W
70V 1 x 1,000W (Bridged) 2 x 1000W 2 x 1,500W 2 x 1,000W (Bridged) 4 x 1000W 4 x 1,500W
100V 1 x 1,000W (Bridged) 1 x 2,000W (Bridged) 1 x 3,000W (Bridged) 2 x 1,000W (Bridged) 2 x 2,000W (Bridged) 2 x 3,000W (Bridged)
Frequency Response 20Hz-20kHz, +/-0.05dB 20Hz-20kHz, +/-0.05dB 20Hz-20kHz, +/-0.05dB 20Hz-20kHz, +/-0.05dB 20Hz-20kHz, +/-0.05dB 20Hz-20kHz, +/-0.05dB
Damping Factor (8 Ohm load, <1kHz) >250 >250 >250 >250 >250 >250
Input Connectors Euroblock (3.5mm), 1/4″ TRS and XLR Combo jack Euroblock (3.5mm), 1/4″ TRS and XLR Combo jack Euroblock (3.5mm), 1/4″ TRS and XLR Combo jack Euroblock (3.5mm), 1/4″ TRS and XLR Combo jack Euroblock (3.5mm), 1/4″ TRS and XLR Combo jack Euroblock (3.5mm), 1/4″ TRS and XLR Combo jack
Output Connectors Neutrik speakON Neutrik speakON Neutrik speakON Neutrik speakON Neutrik speakON Neutrik speakON
Unit Dimensions 19”W x 3.5”H x 16.1”D (483 x 89 x 409mm) 19”W x 3.5”H x 16.1”D (483 x 89 x 409mm) 19”W x 3.5”H x 16.1”D (483 x 89 x 409mm) 19”W x 3.5”H x 16.1”D (483 x 89 x 409mm) 19”W x 3.5”H x 16.1”D (483 x 89 x 409mm) 19”W x 3.5”H x 16.1”D (483 x 89 x 409mm)
Unit Weight 18.5lbs 19.5lbs 20lbs 21.5lbs 24lbs 24lbs
Total Current Draw – all channels driven, 1/8 power sinewave, 120VAC 1.5 Amps 3 Amps 4.2 Amps 3 Amps 6 Amps 8.9 Amps

EcoTour_DataSheet

EcoTour_Series_Manual

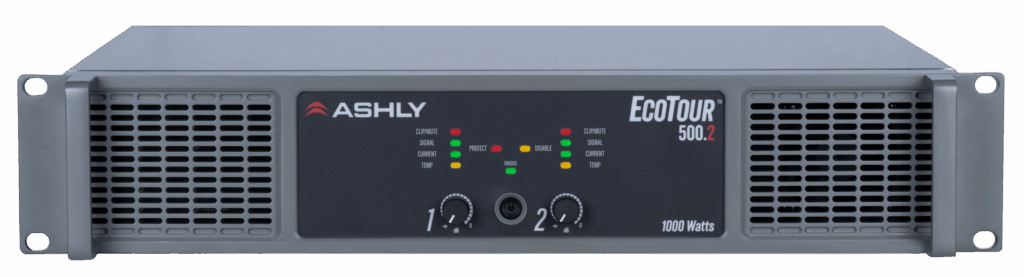

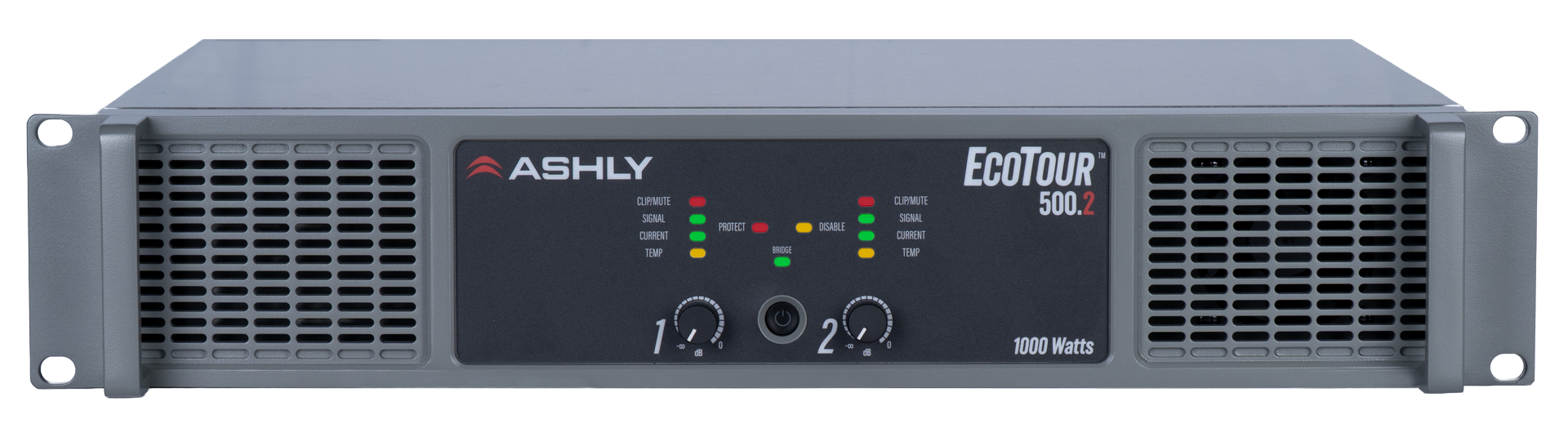

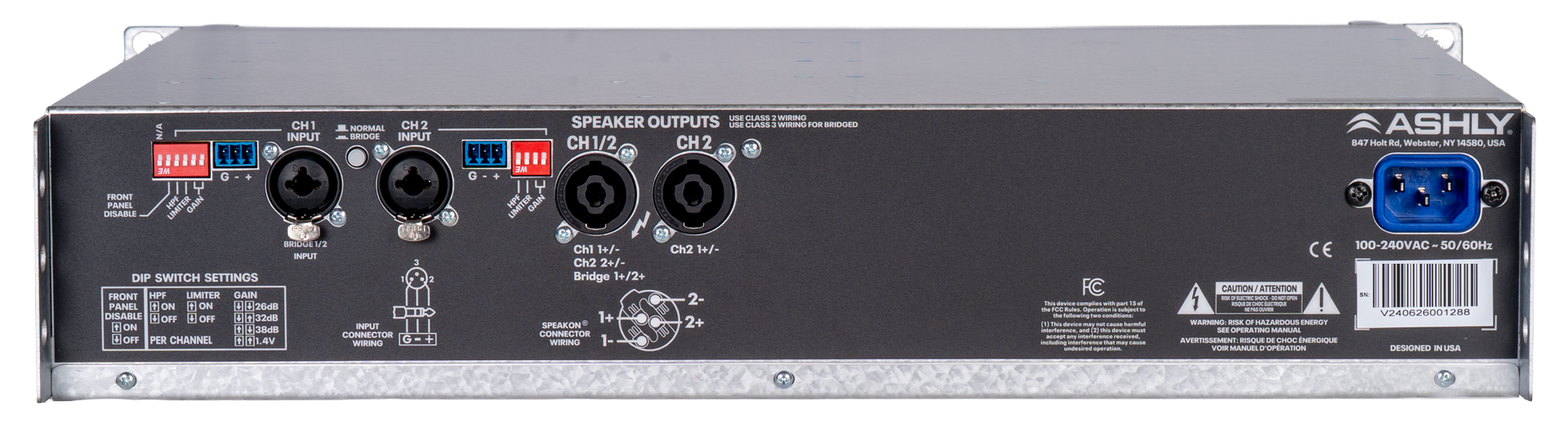

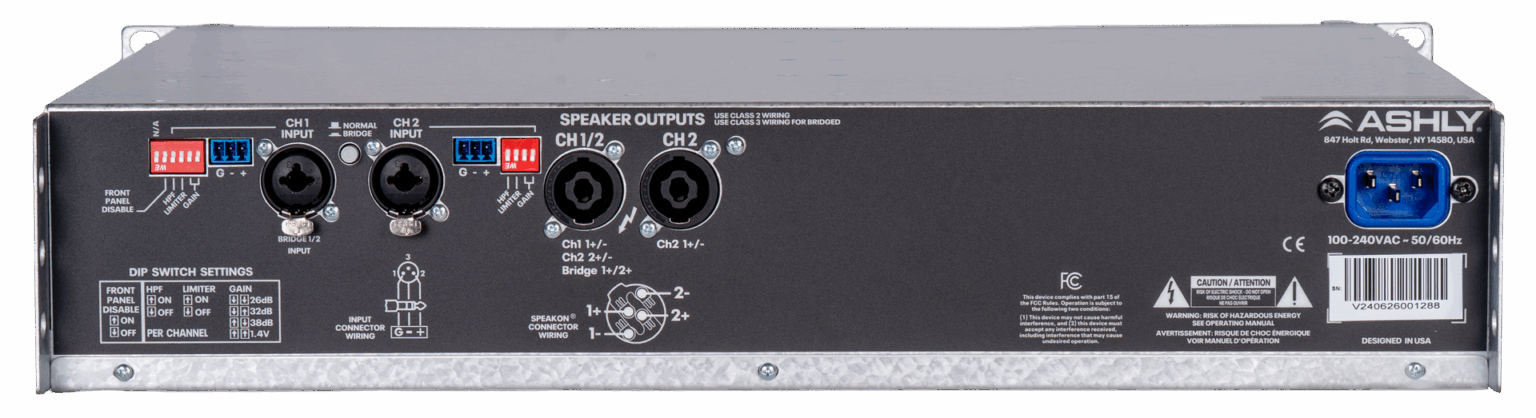

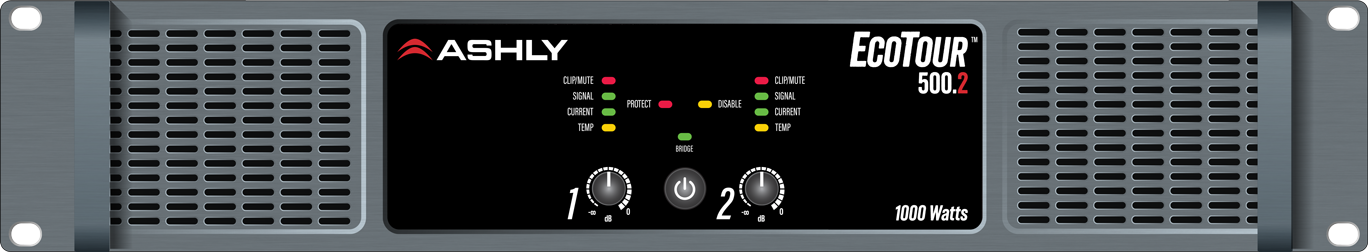

EcoTour 500.2 Front Rear

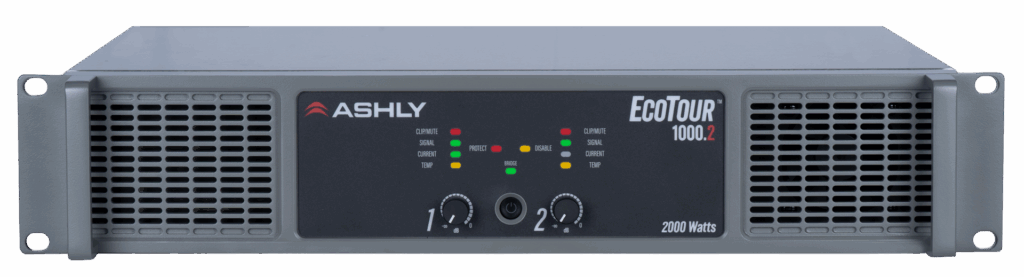

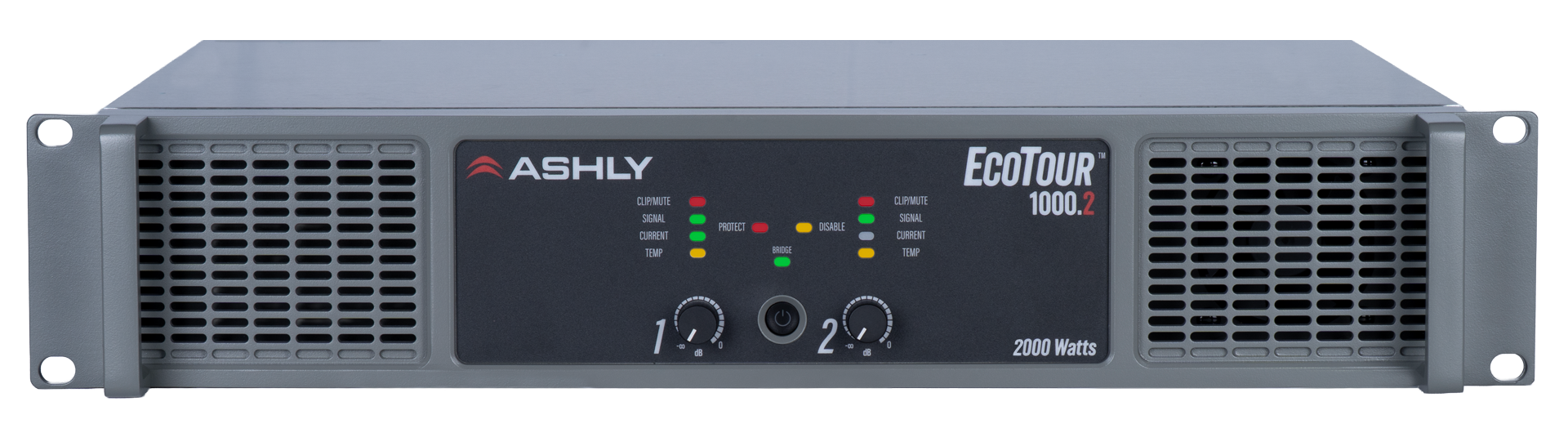

EcoTour 1000.2 Front Rear

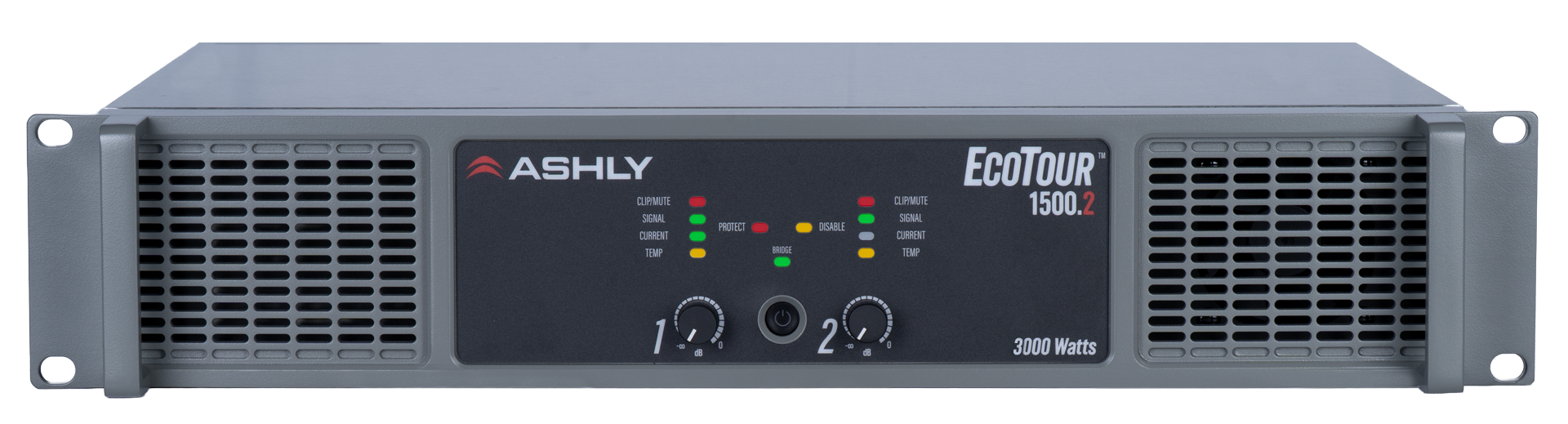

EcoTour 1500.2 Front Rear

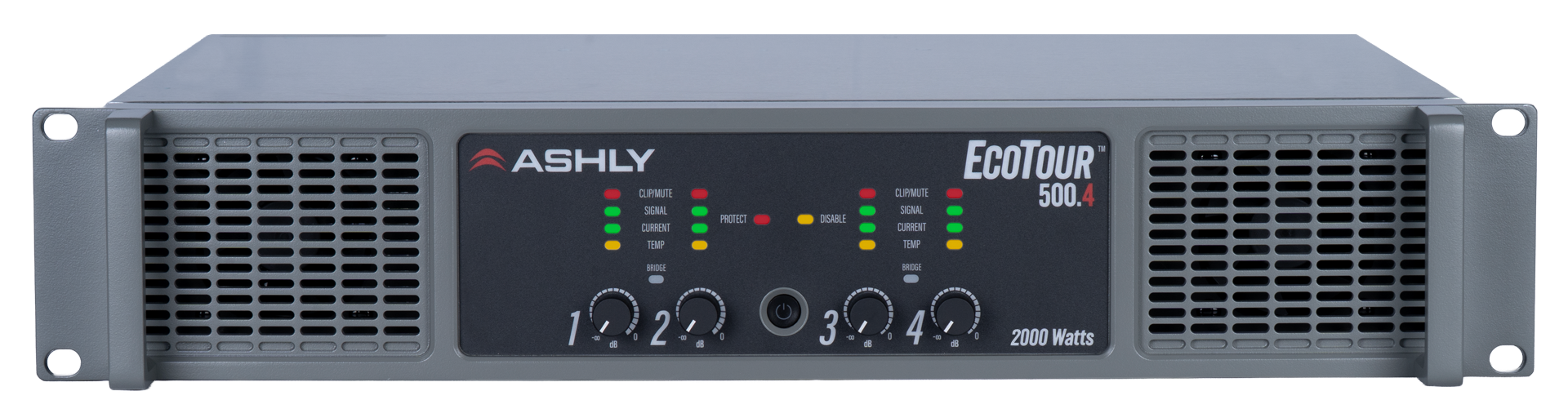

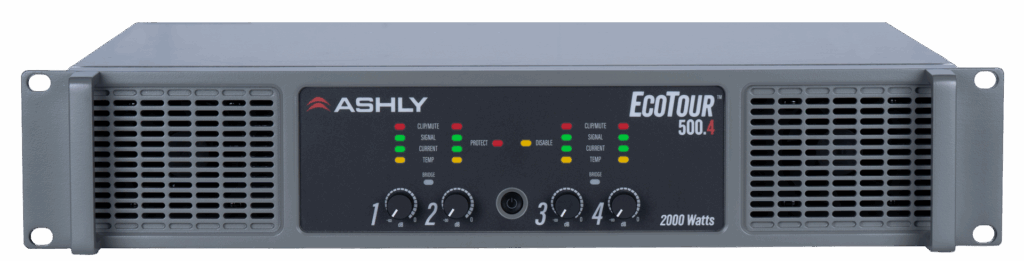

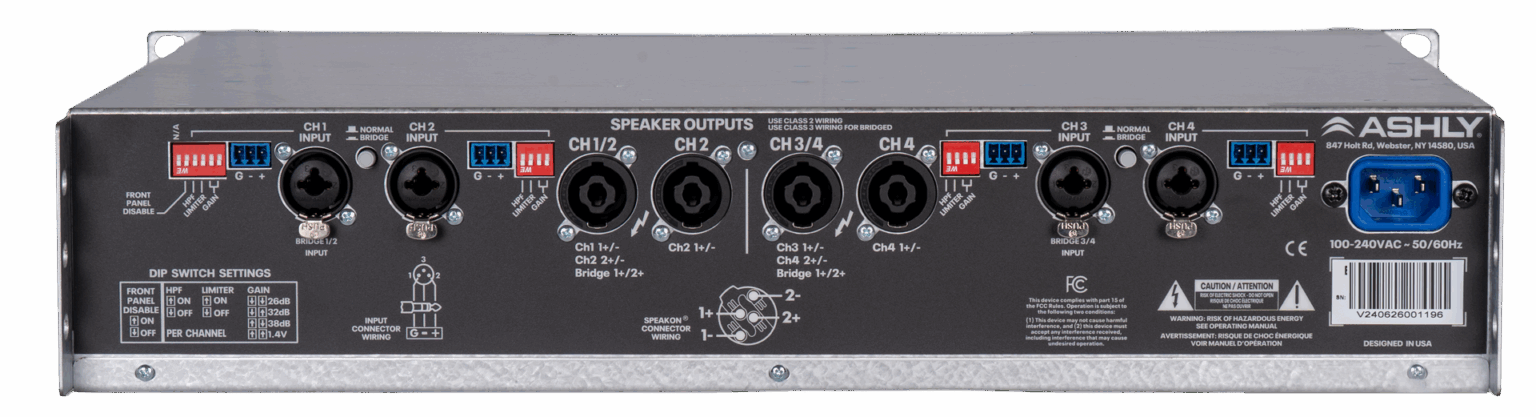

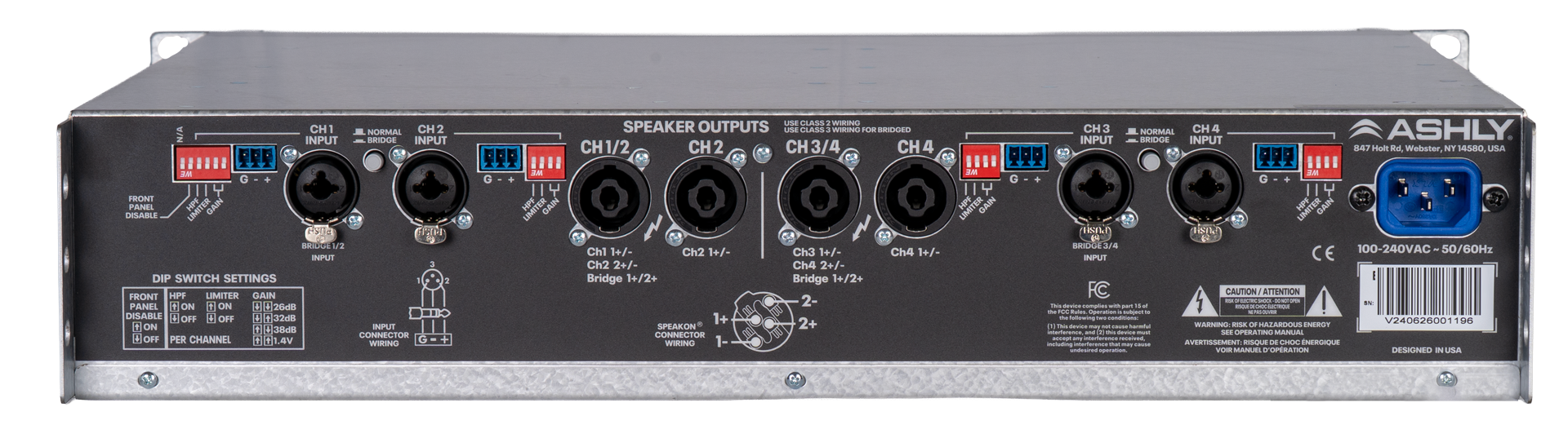

EcoTour 500.4 Front Rear

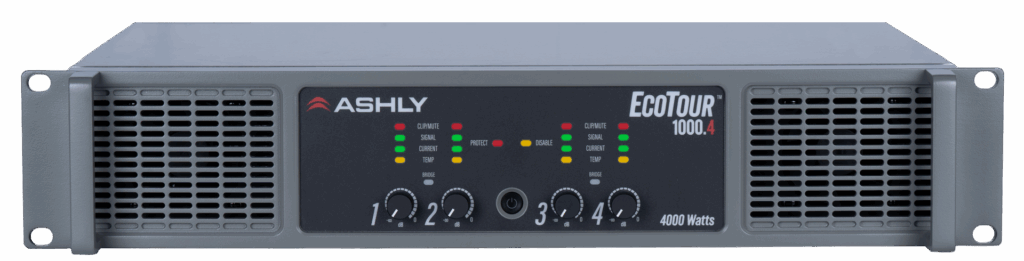

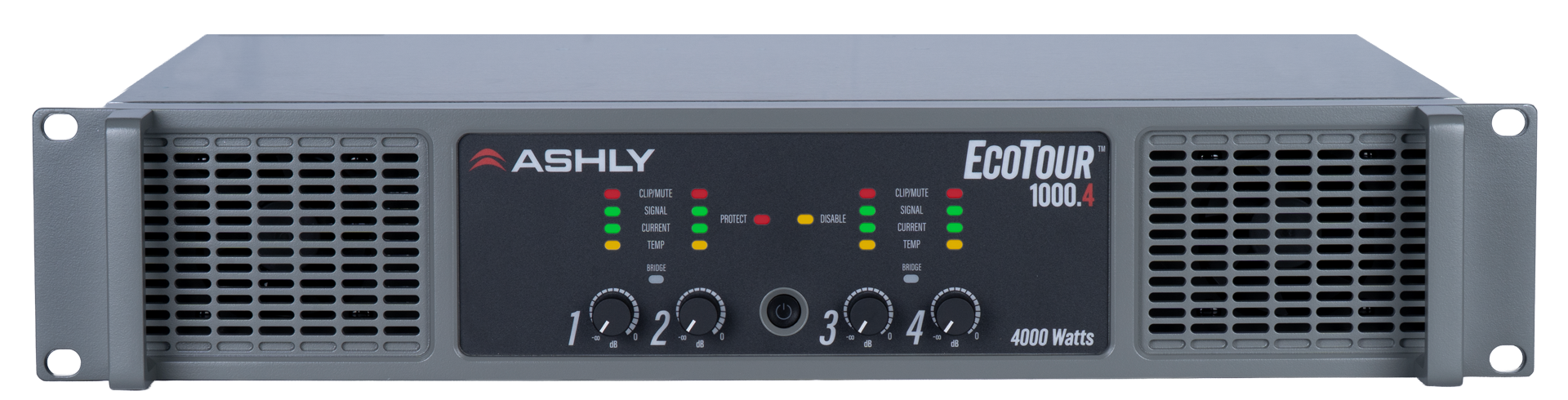

EcoTour 1000.4 Front Rear

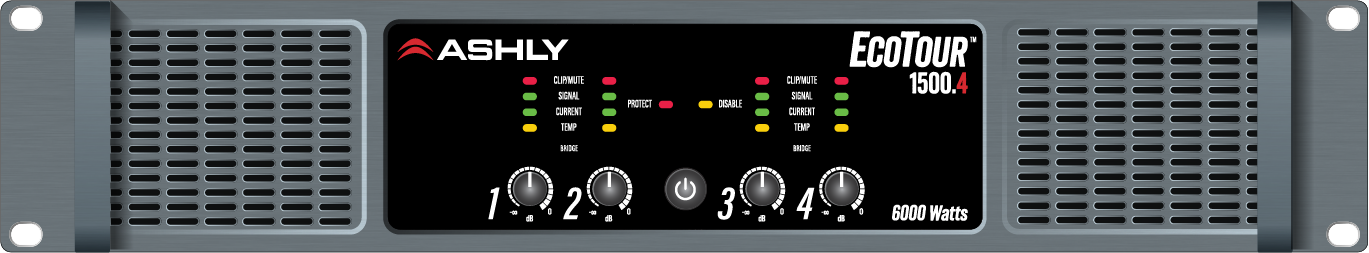

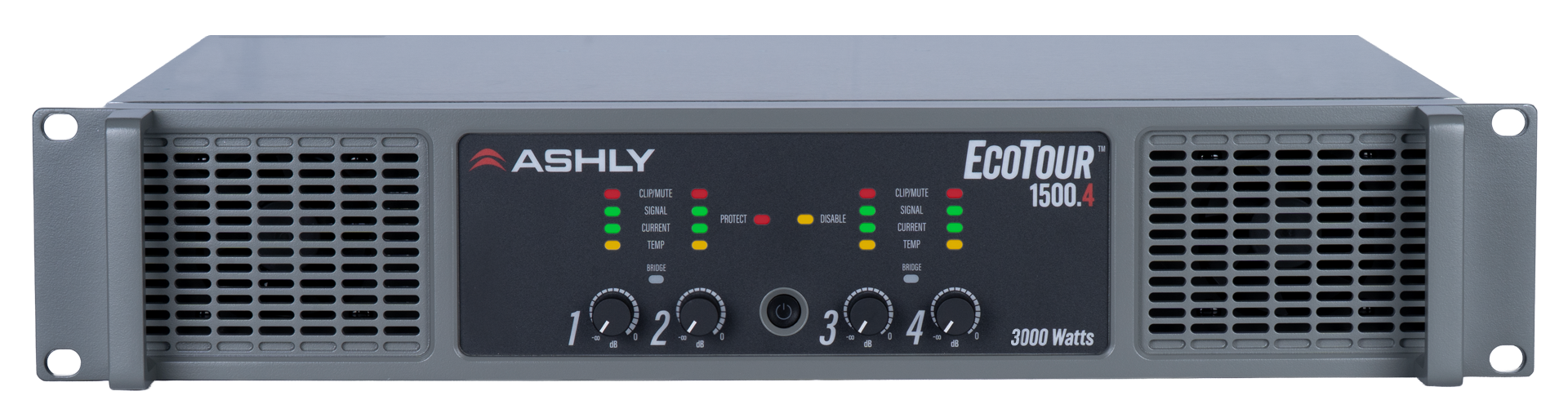

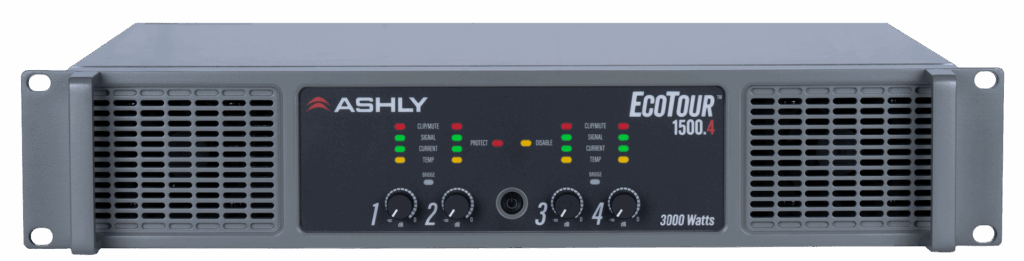

EcoTour 1500.4 Front Rear
